2011-2016 BMW F10 528i 535i Active Radiator Shutter Air Duct 51747200787 OEM
From $104.99
- Condition
- Used
- OEM part number
- 51 74 7 200 787
- Brand
- BMW
Used original BMW
Fits
- BMW 528i2011–2016
- BMW 528i xDrive2012–2016
- BMW 535d2014–2016
- BMW 535d xDrive2014–2016
- BMW 535i2011–2016
- BMW 535i xDrive2011–2016
- BMW 550i2014–2016
- BMW 550i xDrive2014–2016
- BMW ActiveHybrid 52012–2016
Please confirm with your part number or VIN before ordering.
Full Description

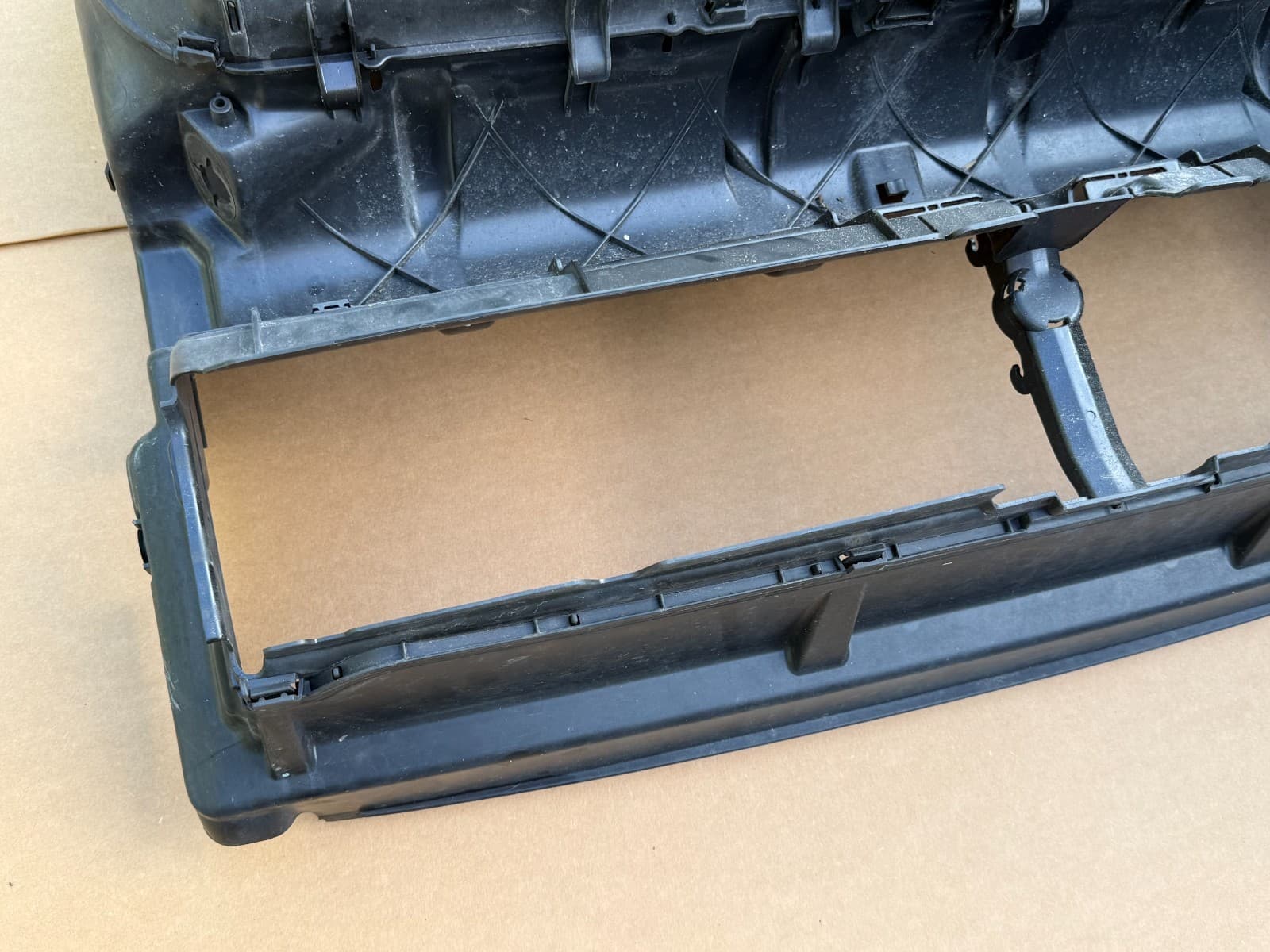

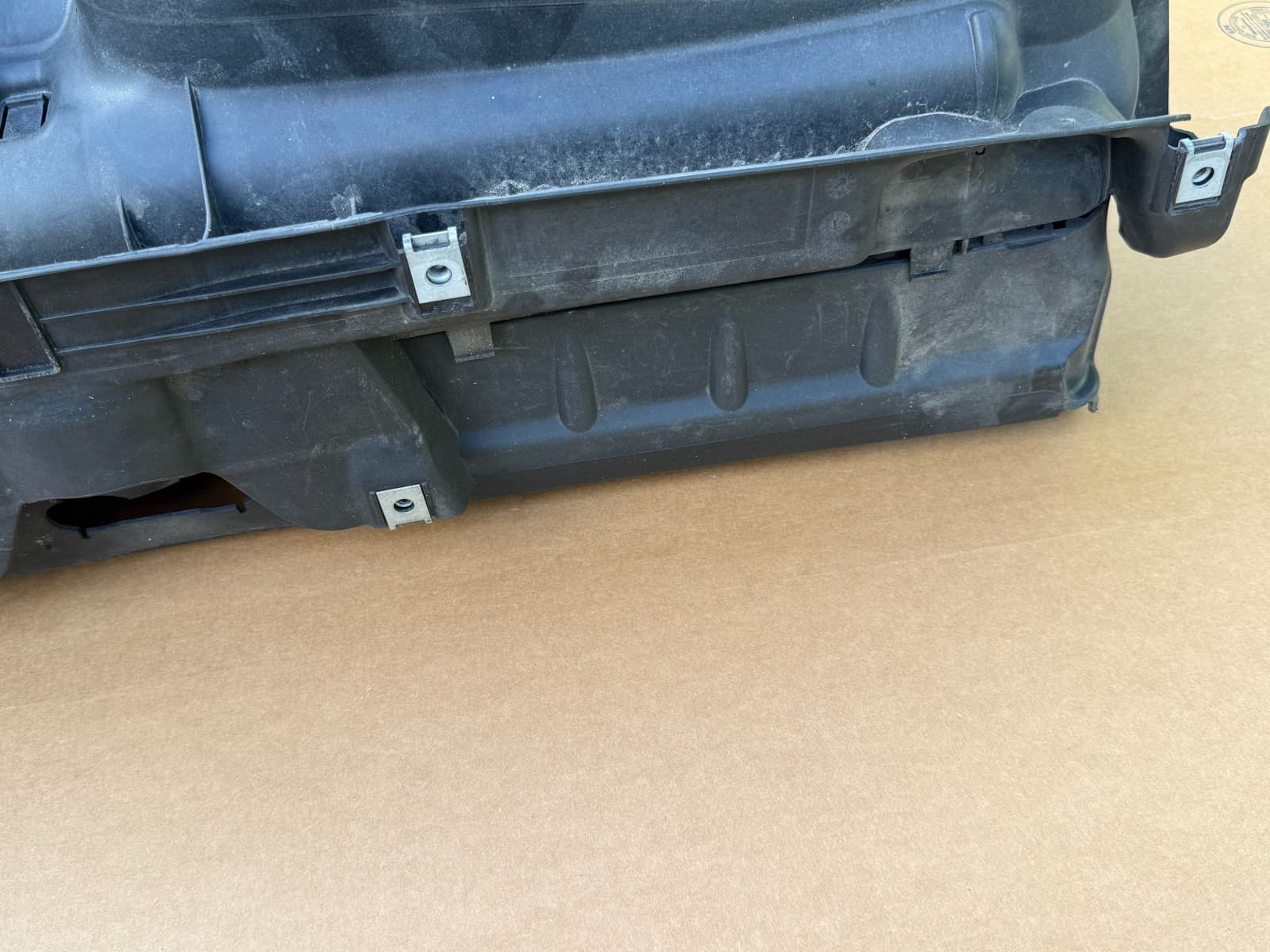

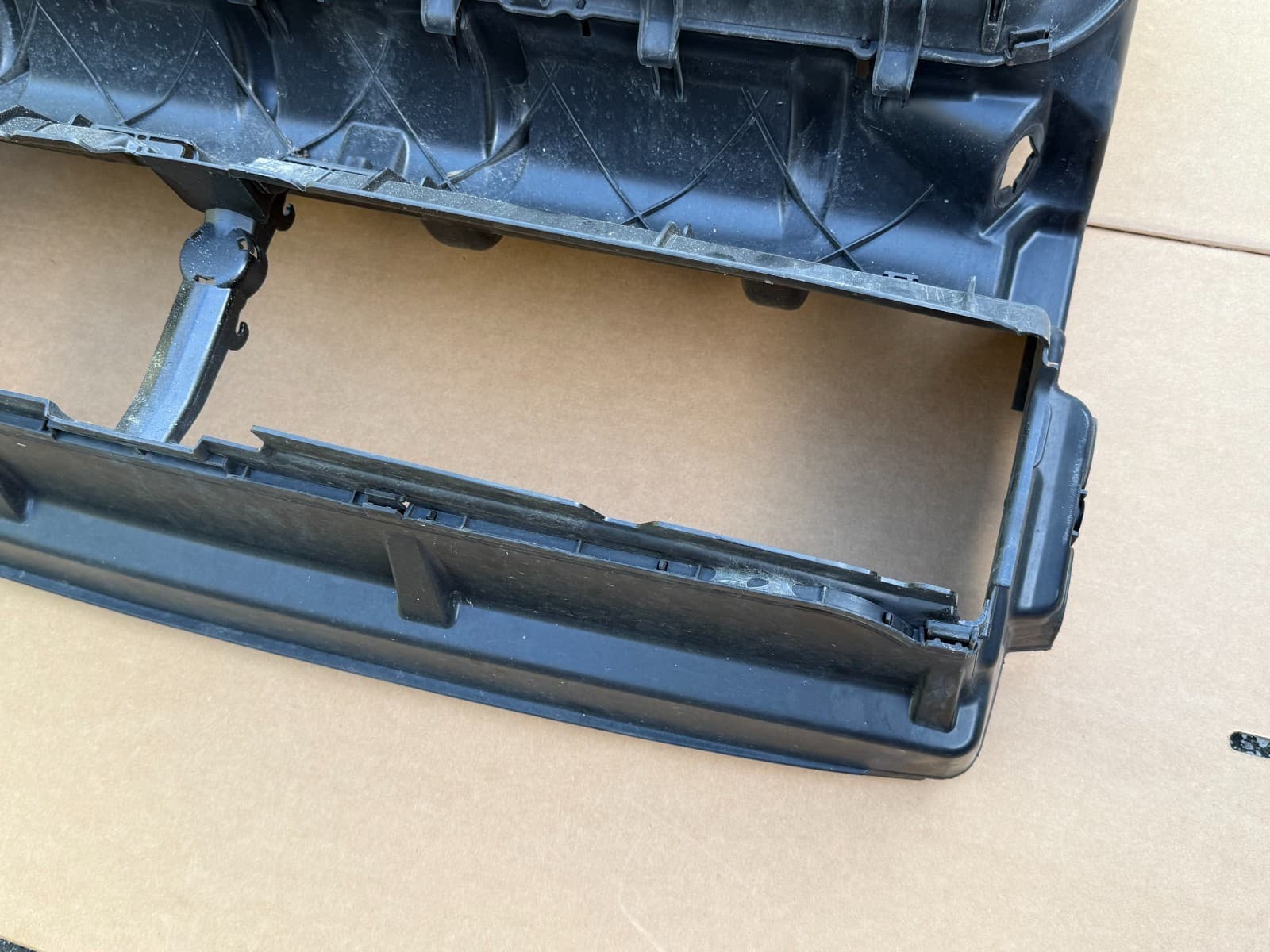

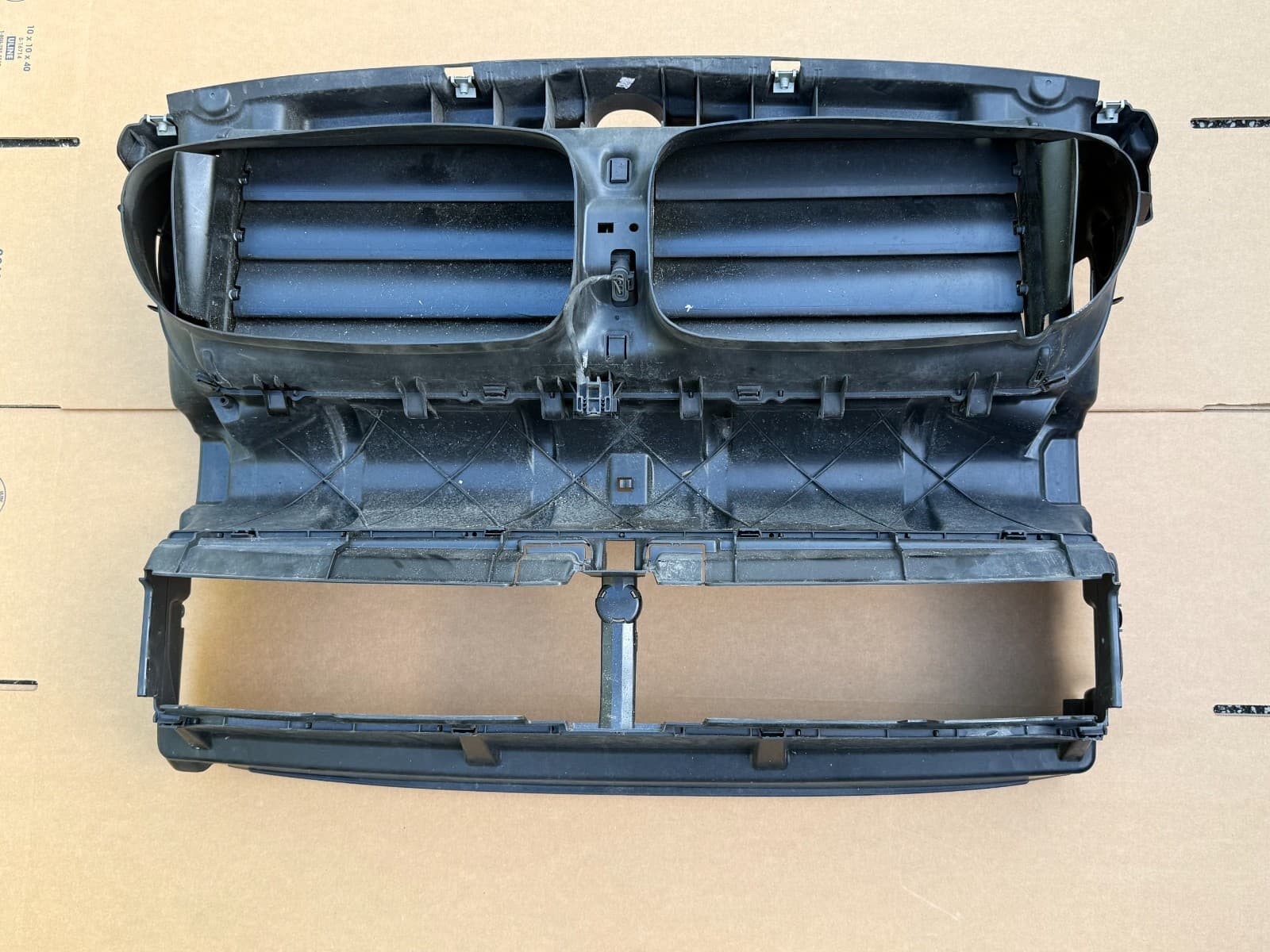

Genuine used OEM BMW F10 front radiator air duct / cooling shroud with active flap shutter assembly.
OEM Part Number:
51747200787
51 74 7 200 787
Short / Label Number:
7200787
7 200 787 18
Supersedes:
51748049681
Part Type:
Front radiator air duct
Radiator shroud / air guide
Active radiator shutter / flap control assembly
Donor Vehicle:
2012 BMW 528i F10
U.S. Fitment:
BMW 528i F10:
2011 - 3.0L N52
2012-2016 - 2.0L N20
BMW 528i xDrive F10:
2012-2016 - 2.0L N20
BMW 535i F10:
2011-2016 - 3.0L N55
BMW 535i xDrive F10:
2011-2016 - 3.0L N55
BMW 535d F10:
2014-2016 - 3.0L N57 diesel
BMW 535d xDrive F10:
2014-2016 - 3.0L N57 diesel
BMW 550i F10:
2014-2016 - 4.4L N63
BMW 550i xDrive F10:
2014-2016 - 4.4L N63
BMW ActiveHybrid 5 F10:
2012-2016
Features:

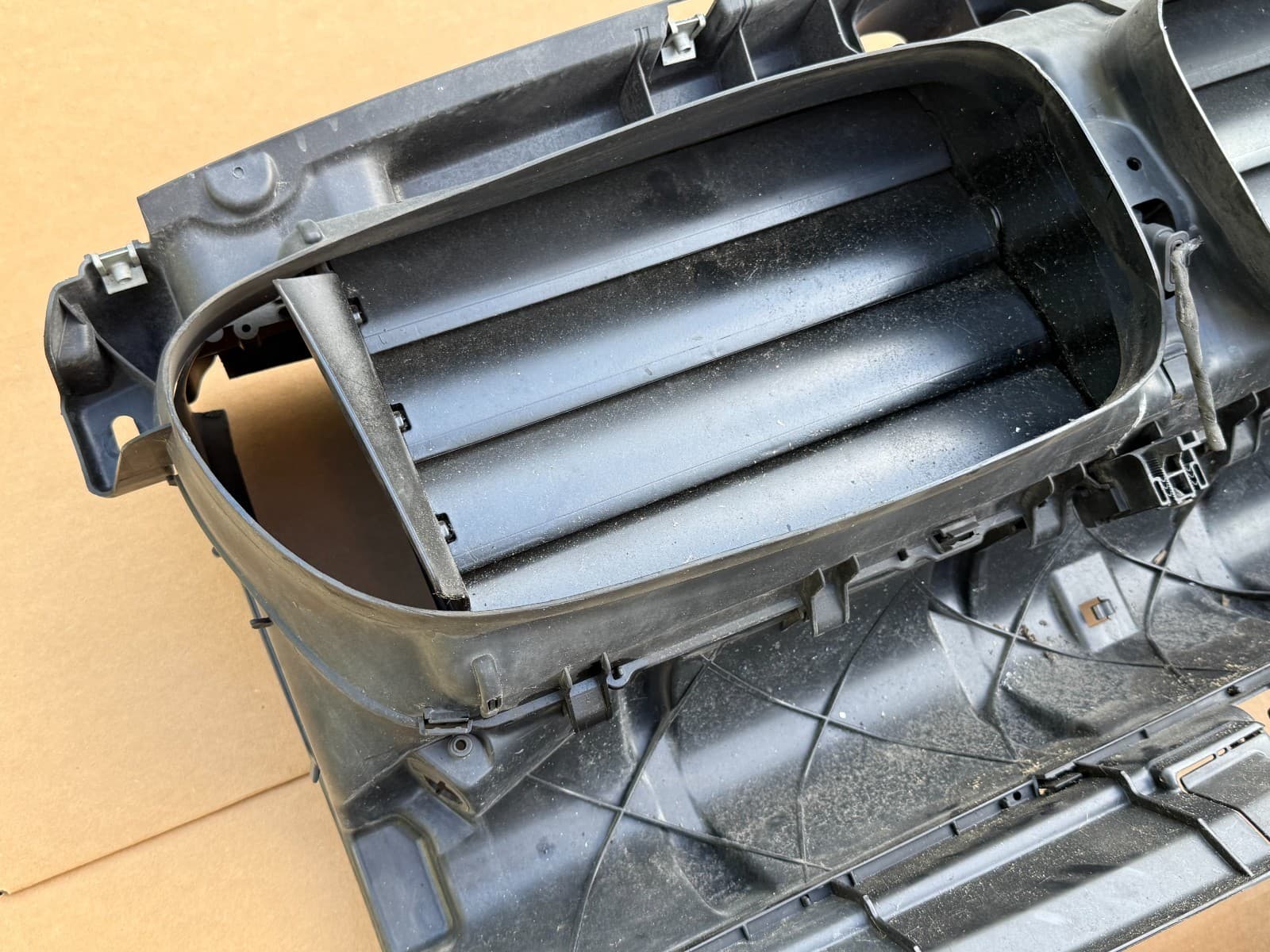

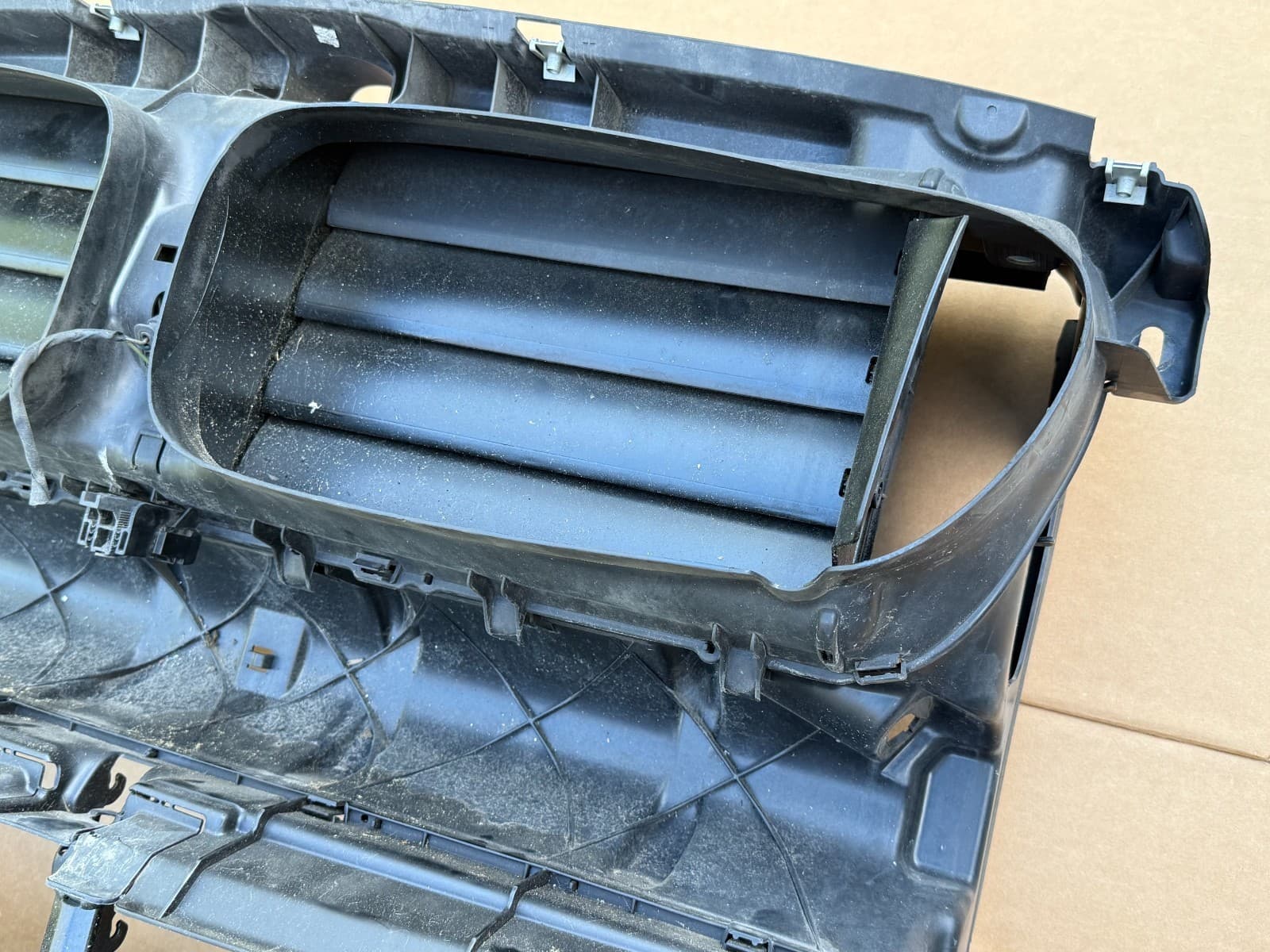

Factory active radiator shutter / flap system
Upper twin shutter assembly
Integrated radiator air duct / shroud
Direct OEM mounting points
Required Equipment:
BMW active flap / CO2 equipment configuration S1CBA
Condition:
Used genuine OEM - removed from a 2012 BMW 528i, cleaned and inspected. May show normal cosmetic wear consistent with age and use. Not aftermarket or reproduction.
Notes:

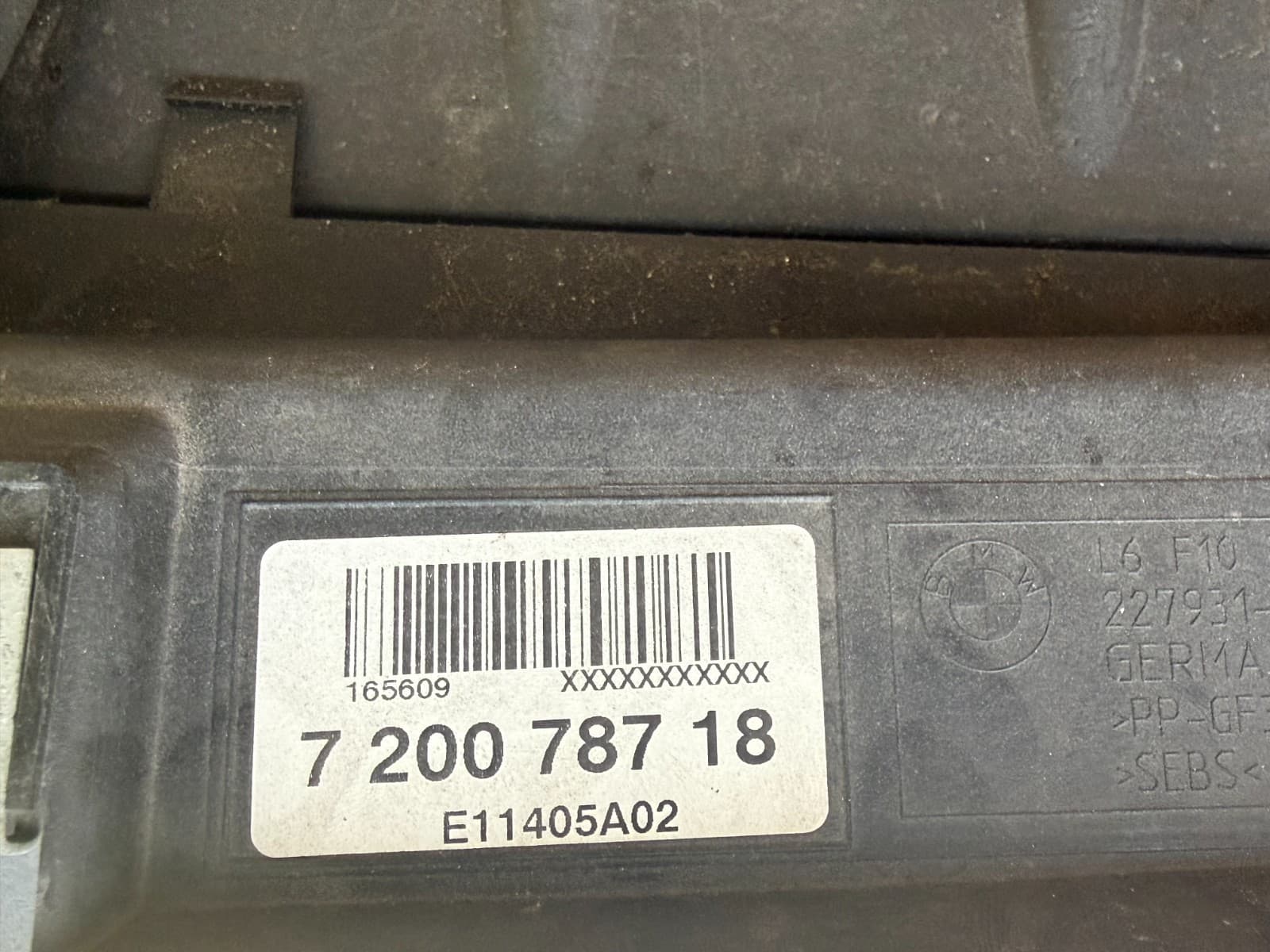

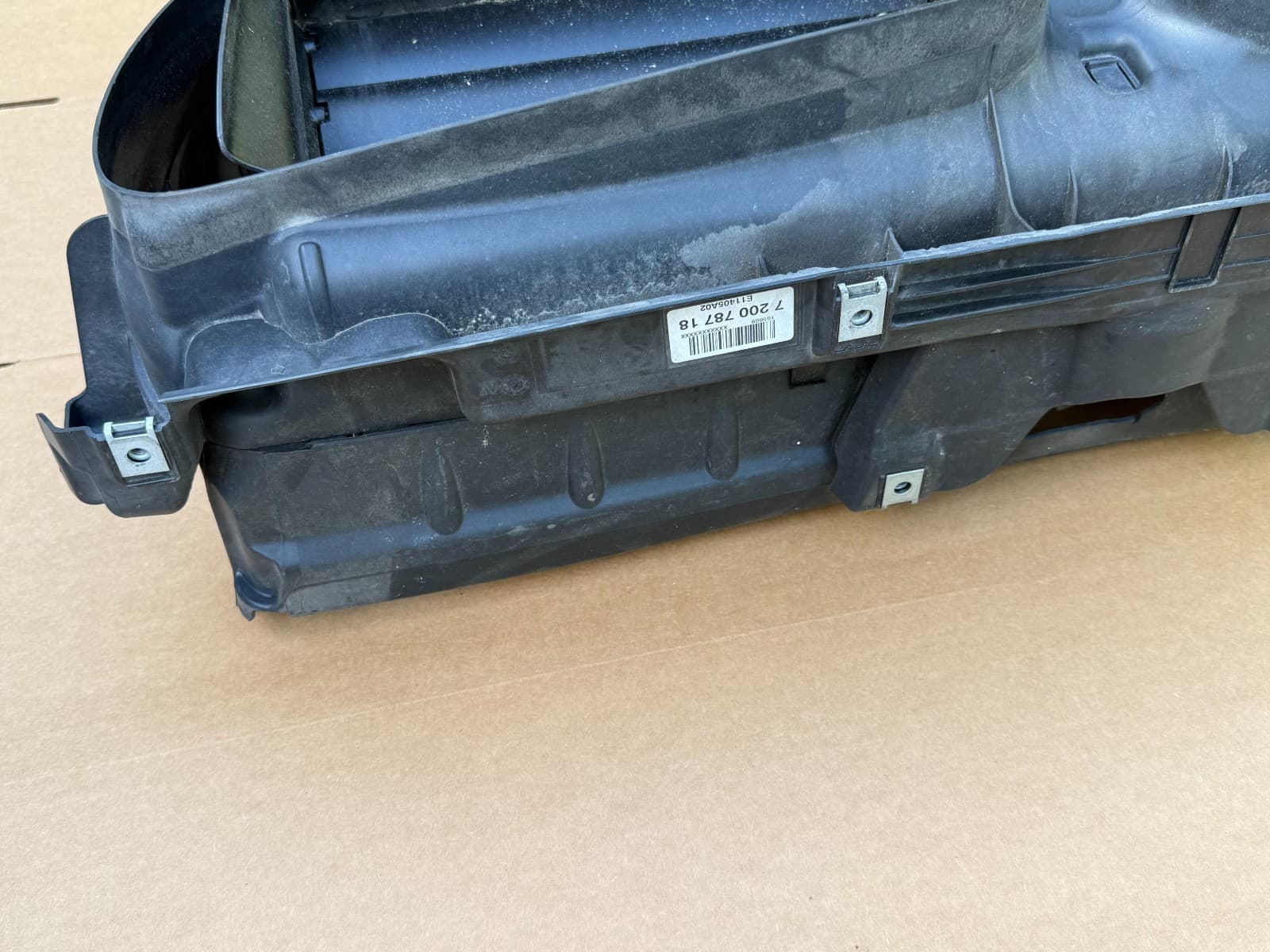

7 200 787 18 is the marking found on the original assembly. BMW service part number is 51747200787.
BMW describes this complete piece as the "Air duct with flap control." The shutters open and close to regulate airflow through the radiator.
BMW used different front air-duct configurations depending on engine and equipment, including Night Vision and M Aerodynamics applications. Match OEM number 51747200787 and the physical configuration to the original part before purchase.
